Prefab Editor User Interface

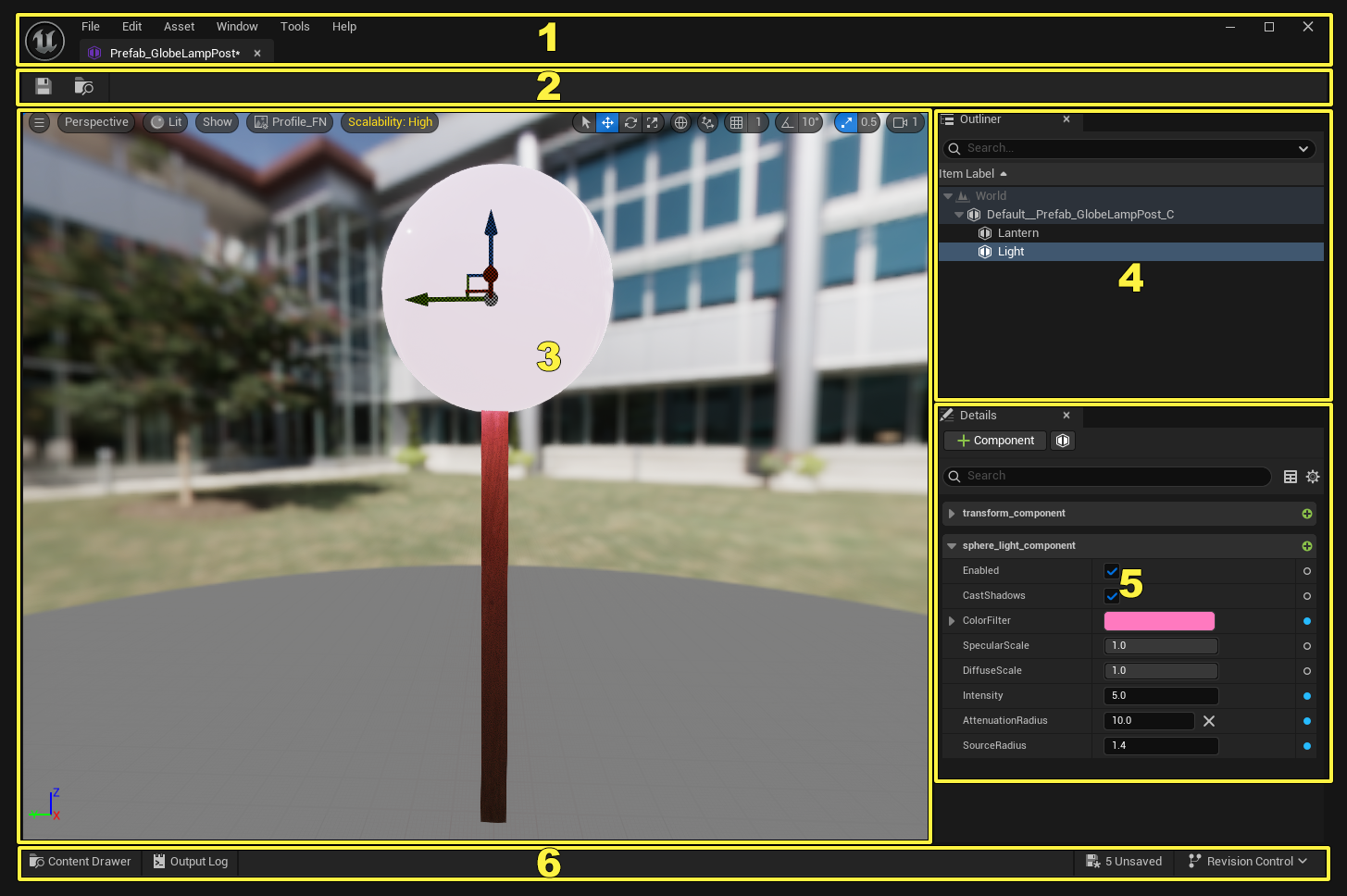

The Prefab Editor consists of a menu bar, two toolbars, and three main regions.

Click image to enlarge.

• Close panels by clicking the X in the corner of the panel.
• Open a panel from the Window menu.

Menu Bar

Click image to enlarge.

File

• Recent Assets - The dropdown menu displays a list of recently opened and viewed assets.
• Save - Saves the changes made to the prefab.
• Save As… - Saves the prefab under a new name.

Edit

• Undo - Undoes the last action taken in the prefab editor.
• Redo - Returns the prefab to the state before Undo was used.
• Undo History - Views the entire undo history.

Asset

• Find in Content Browser… - Browses to the associated asset and selects it in the Content Browser window.
• Reference Viewer - Launches the Reference Viewer, showing the selected asset.
