Create a Puzzle with Prefabs

To create a simple puzzle with the prefabs from the previous step, follow these steps:

1. Navigate to the folder in the Content Browser containing your prefabs.

2. Add the following prefabs by dragging them into the level from the Content Browser:

   • 1 Prefab_PuzzleManager
   • 2 Prefab_Trigger
   • 2 Prefab_TriggerableLight
   • 1 Prefab_TriggerableMovingMesh

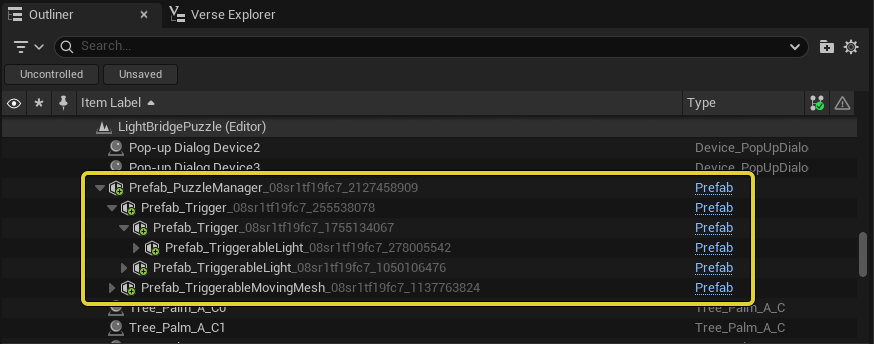

3. Hierarchically structure them as follows in the outliner:



   Click to enlarge image.

4. Add two Volume Creative devices to the level by navigating to the Content Browser and searching for Volume, then dragging them into the level. Rename the volumes TriggerVolume1 and TriggerVolume2.

5. Move the TriggerVolume1 to overlap one of the Prefab_Trigger prefabs and scale it appropriately. Do the same for TriggerVolume2 with respect to the other Prefab_Trigger.

6. Set a reference to TriggerVolume1 on the relevant Prefab_Trigger by selecting the relevant Prefab_Trigger in the Outliner, navigating to the Details panel, and choosing TriggerVolume1 under the trigger_component.
