lock_device: Doors That Open on Cue

Overview

The lock_device is the Verse-controllable handle for any UEFN asset that has a door attached (vault doors, gates, cell doors, and more). It does two related-but-separate things:

• Lock state — whether a player is allowed to interact with the door (Lock, Unlock, ToggleLocked).
• Open state — whether the door is physically open or shut right now (Open, Close, ToggleOpened).

Reach for it whenever the game decides — not the player — when a door should move. Classic uses: a vault that opens when the team captures a zone, a cell that unlocks when a boss is defeated, a gate that closes behind the player after they cross a checkpoint. Every method takes an agent — the instigator of the action — so Fortnite can attribute the open/close to a player for stats, audio, and effects.

The key thing to internalize: lock ≠ closed. A door can be unlocked but still shut (the player must walk up and open it), or locked but open (frozen wide while it's locked). Your code controls both axes independently.

API Reference

lock_device

Used to customize the state and accessibility of doors. lock_device only works with assets that have a door attached.

Full public surface, resolved verbatim from the live Epic digest (Fortnite.digest.verse).

lock_device<public> := class<concrete><final>(creative_device_base):

Methods (call these to make the device act):

Walkthrough

Let's build a vault that auto-opens when a player steps on a pressure plate, then locks itself shut again after a few seconds so the next player has to earn it too.

We use a trigger_device (the pressure plate) and a lock_device (the vault door). When the plate fires, we unlock the vault, swing it open, wait 5 seconds, then close and re-lock it.

using { /Fortnite.com/Devices }
using { /Verse.org/Simulation }
using { /UnrealEngine.com/Temporary/Diagnostics }

# Log channel so we can watch what the vault is doing in the Output Log.
vault_log := class(log_channel){}

vault_controller := class(creative_device):

    Logger:log = log{Channel := vault_log}

    # The pressure plate the player steps on.
    @editable
    Plate:trigger_device = trigger_device{}

    # The vault door we open and close. Must be an asset with a door attached.
    @editable
    Vault:lock_device = lock_device{}

    OnBegin<override>()<suspends>:void =
        # When the plate fires, run OnPlateStepped with the instigating agent.
        Plate.TriggeredEvent.Subscribe(OnPlateStepped)

    # TriggeredEvent hands us a ?agent — it may or may not have an instigator.
    OnPlateStepped(MaybeAgent:?agent):void =
        if (Agent := MaybeAgent?):
            Logger.Print("Plate stepped — opening vault")
            # Run the open/close sequence as a coroutine so the 5s wait
            # doesn't block other events.
            spawn{ RunVaultSequence(Agent) }

    RunVaultSequence(Agent:agent)<suspends>:void =
        # Allow interaction and physically swing the door open.
        Vault.Unlock(Agent)
        Vault.Open(Agent)
        # Hold it open for 5 seconds.
        Sleep(5.0)
        # Shut it and lock it back down for the next player.
        Vault.Close(Agent)
        Vault.Lock(Agent)
        Logger.Print("Vault re-secured")

Line by line:

• vault_log := class(log_channel){} declares a log channel. Logger.Print messages are prefixed with the channel name in the Output Log — great for debugging which step ran.

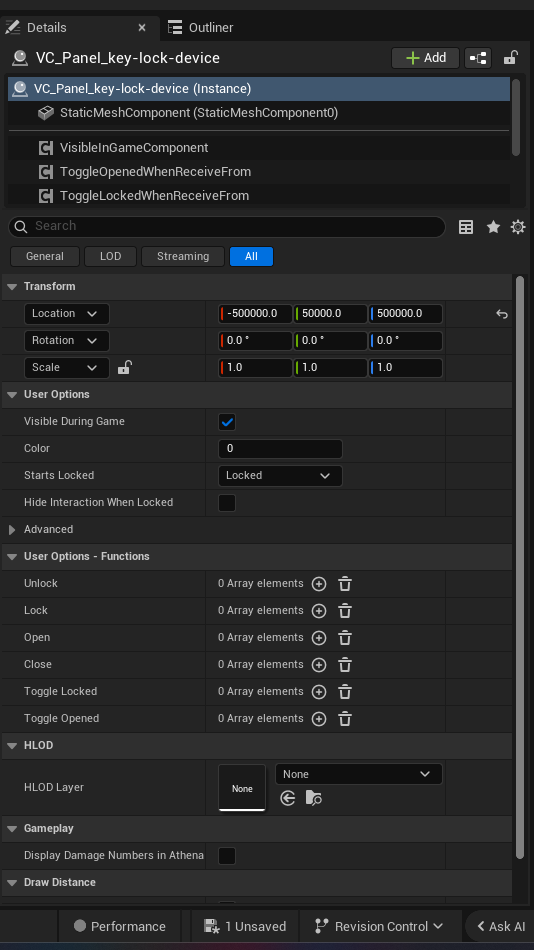

• The two @editable fields, Plate and Vault, are the bridge to the placed devices. After building Verse, you drag your actual Trigger and Lock devices into these slots in the device's Details panel. Without the @editable field you cannot call the device's methods — a bare lock_device{} literal would do nothing.
• OnBegin subscribes OnPlateStepped to the plate's TriggeredEvent. Subscribing in OnBegin is the standard wiring spot.
• TriggeredEvent is a listenable(?agent), so our handler receives a ?agent. We unwrap it with if (Agent := MaybeAgent?): before using it.
• We spawn the sequence so the Sleep(5.0) runs concurrently — the device stays responsive to other plate steps instead of freezing.
• Inside RunVaultSequence we call the real lock_device methods in order: Unlock then Open, wait, then Close then Lock. Each takes the instigating Agent.

Common patterns

Toggle a gate open/closed each time a button is pressed

ToggleOpened flips the door between open and closed — perfect for a switch that acts like a light switch for a gate.

using { /Fortnite.com/Devices }

gate_toggle := class(creative_device):

    @editable
    GateButton:button_device = button_device{}

    @editable
    Gate:lock_device = lock_device{}

    OnBegin<override>()<suspends>:void =
        GateButton.InteractedWithEvent.Subscribe(OnButtonPressed)

    OnButtonPressed(Agent:agent):void =
        # Flip the door: if it's open, close it; if closed, open it.
        Gate.ToggleOpened(Agent)

Unlock a vault when the input trigger fires

Use Unlock on its own when you only want to grant access — the player still walks up and opens the door themselves.

using { /Fortnite.com/Devices }

vault_unlocker := class(creative_device):

    @editable
    FireInput:input_trigger_device = input_trigger_device{}

    @editable
    Vault:lock_device = lock_device{}

    OnBegin<override>()<suspends>:void =
        FireInput.PressedEvent.Subscribe(OnInputPressed)

    OnInputPressed(Agent:agent):void =
        # Just remove the lock; leave the door shut so the player opens it.
        Vault.Unlock(Agent)

Slam a door shut and lock it when a player enters a danger zone

Close and Lock together trap the player — a great escape-room beat. We drive it from a volume_device.

using { /Fortnite.com/Devices }

trap_room := class(creative_device):

    @editable
    DangerZone:volume_device = volume_device{}

    @editable
    ExitDoor:lock_device = lock_device{}

    OnBegin<override>()<suspends>:void =
        DangerZone.AgentEntersEvent.Subscribe(OnEntered)

    OnEntered(Agent:agent):void =
        # Trap them: close the door and lock it so they can't reopen it.
        ExitDoor.Close(Agent)
        ExitDoor.Lock(Agent)

Gotchas

• The asset MUST have a door. lock_device only works with assets that have a door attached. If you point it at a plain wall or prop, the methods silently do nothing.
• Lock state and open state are independent. Lock does not close the door, and Close does not lock it. To fully secure a vault you must call both Close and Lock. To fully open it for a player you typically call both Unlock and Open.
• Every method needs an agent. There is no parameterless Open() on lock_device — you must pass the instigator. When the event hands you a ?agent (like trigger_device.TriggeredEvent), unwrap it with if (Agent := MaybeAgent?): before calling. You cannot pass an unwrapped optional directly.
• No int/float auto-conversion. When you Sleep, pass a float literal like Sleep(5.0), not Sleep(5).
• Don't block on Sleep in a plain handler. Event handler methods like OnPlateStepped are not <suspends>. If you need to wait, spawn a <suspends> coroutine (as in the walkthrough) instead of trying to Sleep inline.
• ToggleOpened vs ToggleLocked. It's easy to confuse them — ToggleOpened flips the physical door, ToggleLocked flips whether players may interact. Pick the one matching the axis you want to change.
