skydive_volume_device: Launch Pads & Pneumatic Tubes in Verse

Overview

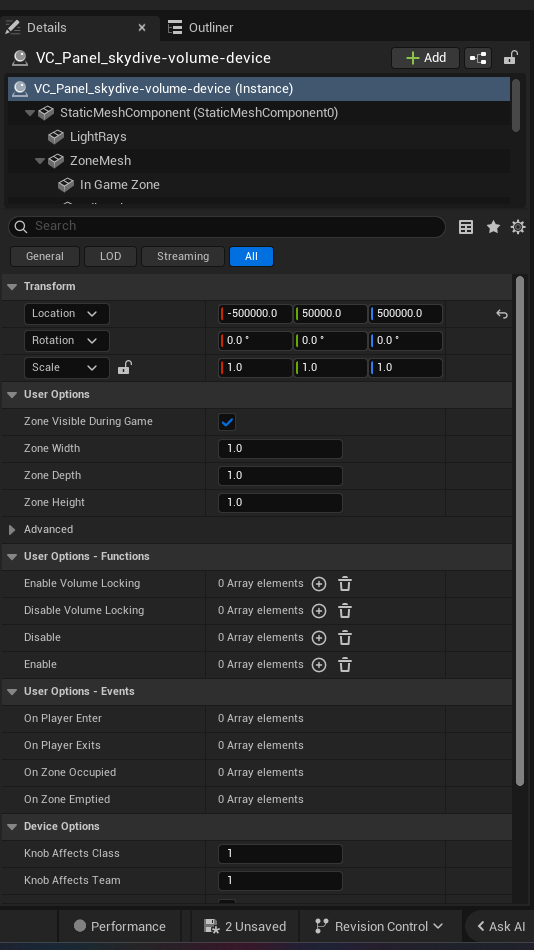

The skydive_volume_device defines a zone that throws any agent inside it into a skydive state — the same controllable free-fall you get when leaving the Battle Bus. Designers configure push force and launch speed in the Details panel; rotating and overlapping several volumes lets you build pneumatic tubes that fling players in chosen directions, or vertical shafts that boost them onto rooftops they couldn't otherwise reach.

Reach for it when you want movement, not damage: a launch pad at the bottom of a tower, a fall chute between floors, a 'wind tunnel' traversal puzzle, or a vent that yeets escaping players back into a boss arena.

In Verse you don't usually set the push force (that's the device options) — instead you react to who is inside. The device extends effect_volume_device and gives you four events (AgentEntersEvent, AgentExitsEvent, ZoneOccupiedEvent, ZoneEmptiedEvent) plus methods to query occupants (GetAgentsInVolume, IsInVolume), toggle the device (Enable/Disable), and even trap players inside (EnableVolumeLocking/DisableVolumeLocking).

API Reference

skydive_volume_device

Used to create a zone where players are put into a skydive state. Can customize the amount of force used to push the player, and how fast players are launched into the air. The direction of the push is in relation to the device, so you can rotate and overlap several devices, then use variable speeds to create pneumatic tubes that propel players in different directions. You can even create unique t

Full public surface, resolved verbatim from the live Epic digest (Fortnite.digest.verse). Inherited members are merged from effect_volume_device.

skydive_volume_device<public> := class<concrete><final>(effect_volume_device):

Events (subscribe a handler to react):

Methods (call these to make the device act):

volume_device

Used to track when agents enter and exit a volume.

Full public surface, resolved verbatim from the live Epic digest (Fortnite.digest.verse).

volume_device<public> := class<concrete><final>(creative_device_base):

Events (subscribe a handler to react):

Methods (call these to make the device act):

Walkthrough

Let's build a launch tower. A skydive volume at the base flings players upward. We want to:

1. Light up an alarm / start music when the FIRST player enters (the zone goes from empty to occupied).
2. Grant a temporary effect or feedback each time ANY player enters.
3. Show how many players are currently riding the tube.
4. Reset things when the LAST player leaves.

We subscribe to the device's real events in OnBegin and call its real methods inside the handlers.

using { /Fortnite.com/Devices }
using { /Verse.org/Simulation }
using { /UnrealEngine.com/Temporary/Diagnostics }

launch_tower := class(creative_device):

    # The skydive volume placed at the base of the tower.
    @editable
    SkydiveTube : skydive_volume_device = skydive_volume_device{}

    # An audio device we turn on while at least one player is riding.
    @editable
    AmbientAudio : audio_player_device = audio_player_device{}

    OnBegin<override>()<suspends>:void =
        # React to the very first player entering an empty zone.
        SkydiveTube.ZoneOccupiedEvent.Subscribe(OnZoneOccupied)
        # React to the last player leaving.
        SkydiveTube.ZoneEmptiedEvent.Subscribe(OnZoneEmptied)
        # React to EACH individual entry.
        SkydiveTube.AgentEntersEvent.Subscribe(OnAgentEnters)
        # React to EACH individual exit.
        SkydiveTube.AgentExitsEvent.Subscribe(OnAgentExits)

    # ZoneOccupiedEvent hands us the agent that filled the empty zone.
    OnZoneOccupied(Agent : agent) : void =
        AmbientAudio.Play()
        Print("Launch tube active!")

    # ZoneEmptiedEvent hands us the agent that last left.
    OnZoneEmptied(Agent : agent) : void =
        AmbientAudio.Stop()
        Print("Launch tube idle.")

    # Fires for every agent that enters, even if the zone was already busy.
    OnAgentEnters(Agent : agent) : void =
        # GetAgentsInVolume returns everyone currently riding.
        Riders := SkydiveTube.GetAgentsInVolume()
        Print("A player entered. Riders now: {Riders.Length}")

    OnAgentExits(Agent : agent) : void =
        # IsInVolume is a <decides> query — use it inside an if.
        if (SkydiveTube.IsInVolume[Agent]):
            Print("Exit fired but agent still tracked inside.")
        else:
            Print("A player left the launch tube.")

Line by line:

• @editable SkydiveTube : skydive_volume_device = skydive_volume_device{} — the field you drag your placed device onto in the editor. You MUST declare it as an editable field; calling skydive_volume_device.Method() directly fails with Unknown identifier.
• In OnBegin we Subscribe four handlers. Each event is a listenable(agent), so every handler takes a single (Agent : agent) parameter.
• ZoneOccupiedEvent only fires on the transition from empty→occupied, so it's the right place to start music. ZoneEmptiedEvent fires occupied→empty, so it stops music. This is much cleaner than counting entries yourself.
• AgentEntersEvent / AgentExitsEvent fire for every player, so we use them for per-player bookkeeping. GetAgentsInVolume() gives the live occupant list — .Length is the rider count.
• IsInVolume[Agent] is a <decides> function: it doesn't return a bool, it succeeds or fails, so it must be called inside an if with square brackets.

Common patterns

Pattern 1 — Trap players with volume locking (boss-arena vent)

Lock the volume so any player who steps into the vent cannot leave until you unlock it — great for forcing a respawn loop or a 'sky cage' mini-game.

using { /Fortnite.com/Devices }
using { /Verse.org/Simulation }

sky_cage := class(creative_device):

    @editable
    Vent : skydive_volume_device = skydive_volume_device{}

    OnBegin<override>()<suspends>:void =
        # Once someone enters, lock the volume so they're stuck skydiving.
        Vent.AgentEntersEvent.Subscribe(OnEnter)

    OnEnter(Agent : agent) : void =
        Vent.EnableVolumeLocking()
        # ...later, after a timer or objective, free them:
        # Vent.DisableVolumeLocking()

Pattern 2 — Enable/Disable the tube as a gated mechanic

Keep the launch tube dormant until a switch is flipped, then turn it on.

using { /Fortnite.com/Devices }
using { /Verse.org/Simulation }

gated_tube := class(creative_device):

    @editable
    Tube : skydive_volume_device = skydive_volume_device{}

    @editable
    PowerSwitch : button_device = button_device{}

    OnBegin<override>()<suspends>:void =
        # Start with the tube off.
        Tube.Disable()
        PowerSwitch.InteractedWithEvent.Subscribe(OnSwitch)

    OnSwitch(Agent : agent) : void =
        # Flip the tube on when the switch is pressed.
        Tube.Enable()

Pattern 3 — Per-agent rewards using GetAgentsInVolume on a timer

Use ZoneEmptiedEvent plus the occupant list to detect 'everyone has launched' and report the final rider.

using { /Fortnite.com/Devices }
using { /Verse.org/Simulation }

launch_counter := class(creative_device):

    @editable
    Tube : skydive_volume_device = skydive_volume_device{}

    OnBegin<override>()<suspends>:void =
        Tube.ZoneEmptiedEvent.Subscribe(OnEmptied)

    OnEmptied(Agent : agent) : void =
        # Agent here is the LAST player who left.
        # Confirm the volume is truly empty.
        Remaining := Tube.GetAgentsInVolume()
        if (Remaining.Length = 0):
            Print("Everyone has launched — tube clear.")

Gotchas

• You must use an @editable field. A bare SkydiveTube.Enable() where SkydiveTube isn't a declared field gives Unknown identifier. Declare it at class scope and drag the placed device onto it in the editor.
• IsInVolume is <decides>, not a bool. Call it as if (Tube.IsInVolume[Agent]): with square brackets. Writing if (Tube.IsInVolume(Agent)): or treating it like Tube.IsInVolume(Agent) = true won't compile.
• ZoneOccupiedEvent ≠ AgentEntersEvent. AgentEntersEvent fires for every player; ZoneOccupiedEvent only on the empty→occupied transition. Don't start your music on AgentEntersEvent or it'll restart every time a second player jumps in.
• Volume locking persists. EnableVolumeLocking() keeps players inside until you explicitly call DisableVolumeLocking(). If you forget to unlock, players are stuck skydiving forever — always pair them with a clear release condition.
• Disable() stops the skydive effect. A disabled skydive volume no longer launches players, so re-Enable() it before expecting entry events to do anything useful.
• The handler param is agent, not player. Events deliver an agent. If you need player-specific APIs, get the agent's player from it where required — but the entry/exit and zone events all type their payload as agent.
• No using { /Verse.org/Simulation } for events? creative_device and Subscribe rely on the device imports; keep your using lines (the compile gate adds the device modules) so Subscribe and creative_device resolve.
